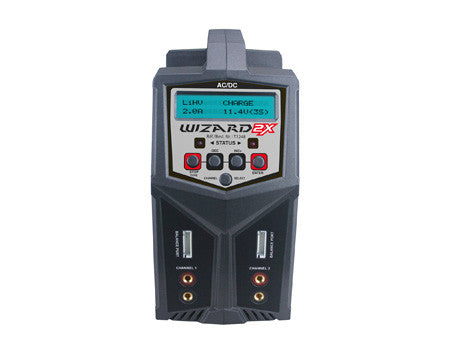

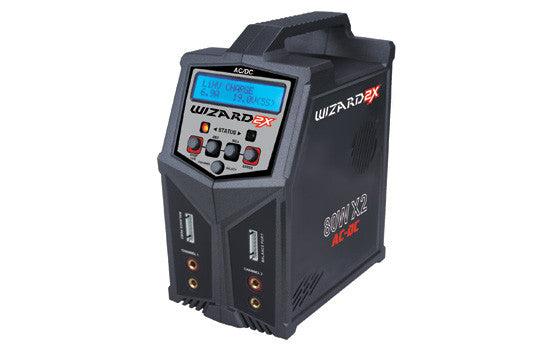

Features of the T2M Wizard charger
Main Features
- Microprocessor controlled operation
- Input voltage 11 to 18V DC
- Suitable for Outdoor and Indoor model batteries
- Compact size for easy transport
- Built-in fan
- Charges Ni-Cd / Ni-MH batteries from 1 to 18 cells (Delta Peak) and Li-Ion / Li-Po / Li-Fe from 1 to 6 cells and Lead from 2 to 20V.
- Charging current adjustable from 0.1 A to 7A in 100mA steps
- Discharge current adjustable from 100mA to 1A
- End of charge detection by Delta Peak (Ni-Cd and Ni-MH).
- Constant Current/Constant Voltage type charge (Li-Ion/Li-Po/Li-Fe and Pb).
- Cycle Mode (Discharge/Charge or Charge/Discharge)
- LiPo balance current: 300mAh/cell 1~15 cells
- 1 2-line, 16-character backlit LCD display with perfect readability.
- Protections: incorrect input voltages, faulty connections and polarity reversals at input and output.
- 2 integrated Li-Po cell balancers ensuring the protection of each Li-Po cell
- during charging with a tolerance of 5mV (charging or discharging).
- Max balancing current 250mA.
- 2 ports for temperature probes (not included)
- XH balance plug connections.
- Dimensions: 136 x 127 x 56 mm
- Weight: 400g
Included
- Wizard 2X Charger
- Power cable
- 2x JST XH balancing plates with cables
- 1x Crocodile Plug
- 1x XT60 charging cord
- 1x Dean Charging Cord
- 1x Tamiya charging cord
- 1x JST Charging Cord
- 1x Bec Charging Cord
- 1x Instructions in French
