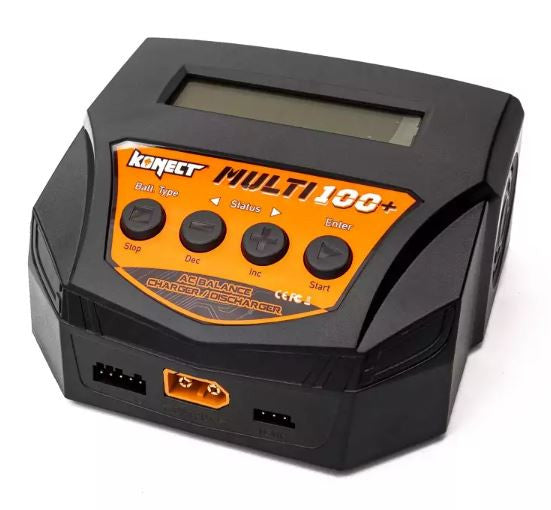

Presentation of the Konect Multi 100 Plus Charger
The Konect Multi 100 Plus represents the latest generation of chargers/balancers with an LCD screen and a balancer for Lipo batteries from 2 to 4S. Designed to connect to 220V, it offers remarkable ease of use . Compatible with a multitude of battery types such as NiCd/NiMh, LiPo/LiHv/LiIo/LiFe and Pb, this advanced charger is packed with innovative features.
Secure operating software
When charging or discharging, an “AUTO” function sets the supply current automatically . Particularly for Lithium batteries, this mode prevents any overcharging which could lead to an explosion. All programs are checked for possible errors in order to maintain optimal security.
Individual Lithium battery balancer included
The charger has an individual voltage balancing cell (balancer). It is therefore not necessary to connect an independent balancer when you charge your Lithium batteries (Li-ion, Li-Po, Li-Fe) to balance the cell voltage .
Individual balancing of cells in discharge
It can also monitor the balancing of Lithium battery cells during the discharge procedure. If the voltage of one of them is abnormal, the discharge will be interrupted followed by an error message.
Optimized for several types of Lithium batteries
It supports Lithium batteries: Lion , LiPo , LiFe and LiHv .
Lithium battery, “fast charge” and “storage” modes
Different options are available for Lithium batteries. “ Quick charging ” reduces time
charging and “ storage ” mode controls the final voltage of the battery to prepare them for a long period of storage.
Features of the Konect Multi 100 Plus Charger
Technical characteristics
- 100/240v power supply
- Charging power 100W
- Discharge power 5W
- Load from 0.1 to 10.0A
- Discharge from 0.1 to 2.0A
- Lipo balancing 300mA per cell
- Nimh/Nicd of 6 to 8 elements
- Lion/Lipo from 2S to 4S elements
- Dimensions: 115x112x55mm
- Weight 302 gr
Included
- Konect Multi 100 Plus Charger
- DEAN Charging Cord
- Tamiya charging cord
