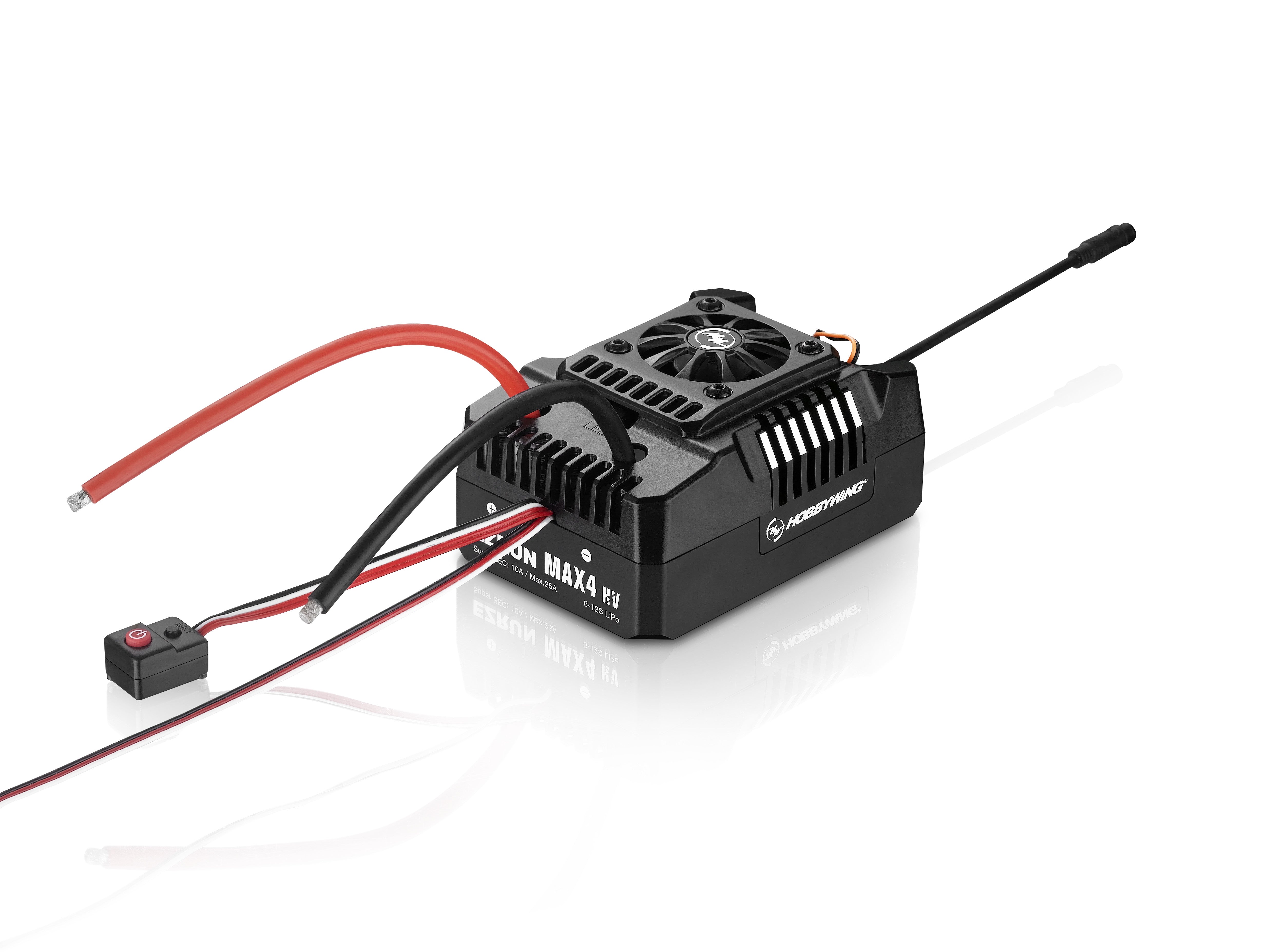

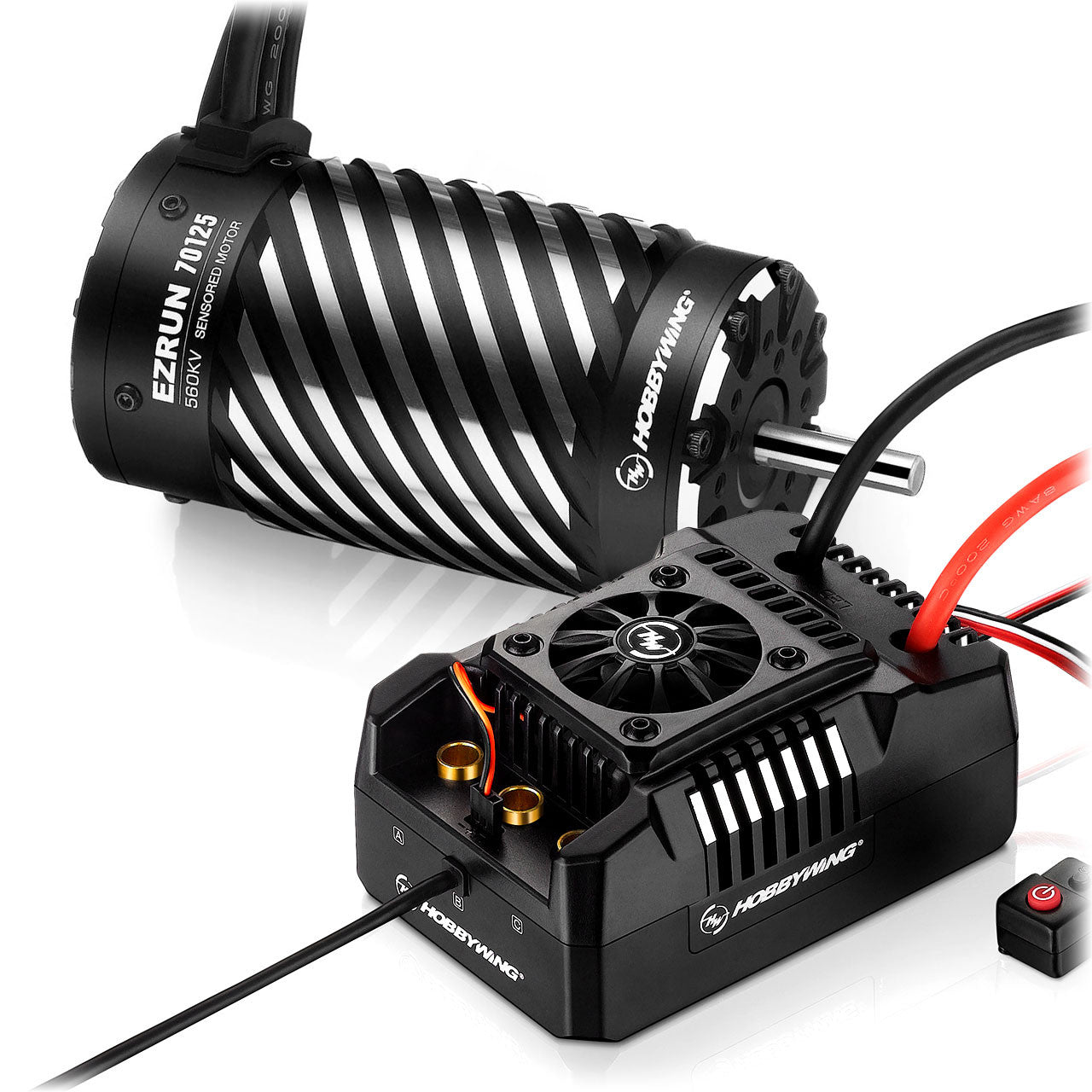

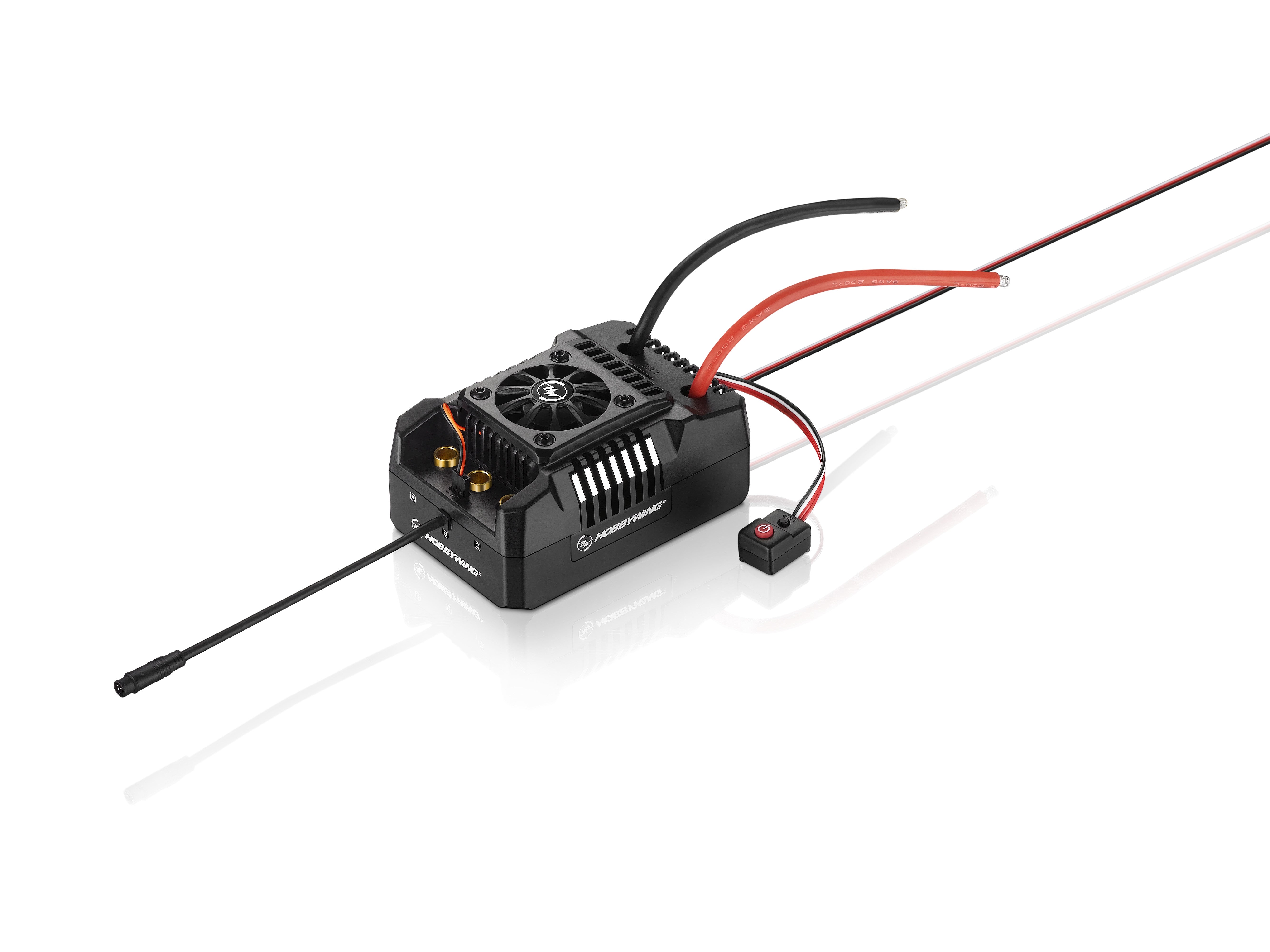

Presentation of the Hobbywing EzRun MAX4-HV 300A drive
The Ezrun Max4 ESC is suitable for large scale models like 1/4 and 1/5 . This variator can be ideally used in any model, whether off-road or track vehicle . It is the ideal choice for high-end models that are heavily used or driven aggressively.
Despite the large size of this drive, Hobbywing has taken care to use high quality materials . The Max4-HV is perfectly protected against dust and humidity . The electronic switch is also well protected against any damage it may suffer. In addition, the Ezrun Max4-HV has a built-in super high current BEC , which can provide 25A power. The output voltage of the Bec is adjustable between 6 V and 8.4 V.
Features of the Hobbywing EzRun MAX4-HV 300A drive
Main Features
- Super-powerful BEC switching mode with 10A constant current and 25A instantaneous
- Flame-retardant circuit to protect the battery connectors
- Integrated protection: cut-off voltage, overheating, loss of signal, etc.
- Programmable via LCD Programming Card or OTA Module
- Real-time data recording
Technical characteristics
- Power: 300A with Peak at 2000A
- Motor type: Sensored and Sensorless
- Motor limit: 12S 600 Kv in 70125
- Power supply: Lipo 6 to 12S
- BEC: 6 V / 7.4 V / 8.4 of 10A with Peak at 20A
- Dimensions: 125x85x61.7mm
- Weight: 775.4 g

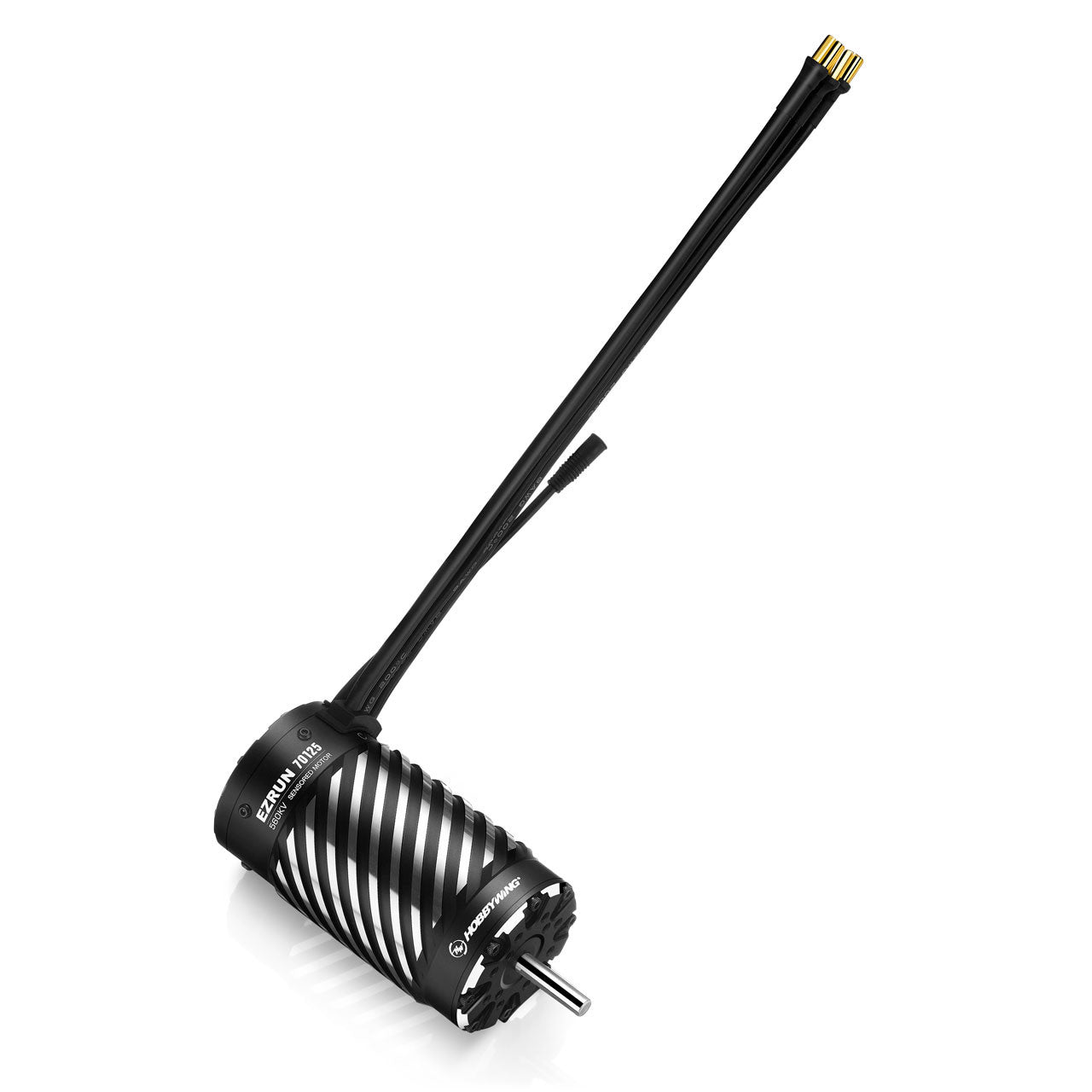

Hobbywing EzRun 70125SD 560KV Sensored Motor 30402850 - Specifications:
- Sensor mode in perfect combination with Ezrun MAX4-HV
- CNC aluminum housing, 0.2mm silicon steel sheets
- Four sintered NdFeB magnets for super torque, stable performance and explosive power
- New innovative sensor interface
- Waterproof and dustproof thanks to rolling rubber coating
- Independent high-precision encoder in the motor to communicate rotor position
- More power and less heat generation
Hobbywing EzRun 70125SD 560KV Sensored Motor 30402850 - Dimensions:
- Power: 560Kv
- Compatible: Lipo 8 to 12S
- Motor shaft: 8mm
- Length: 125mm
- Axle length: 30mm
- Diameter: 70mm
- Weight: 1995gr
