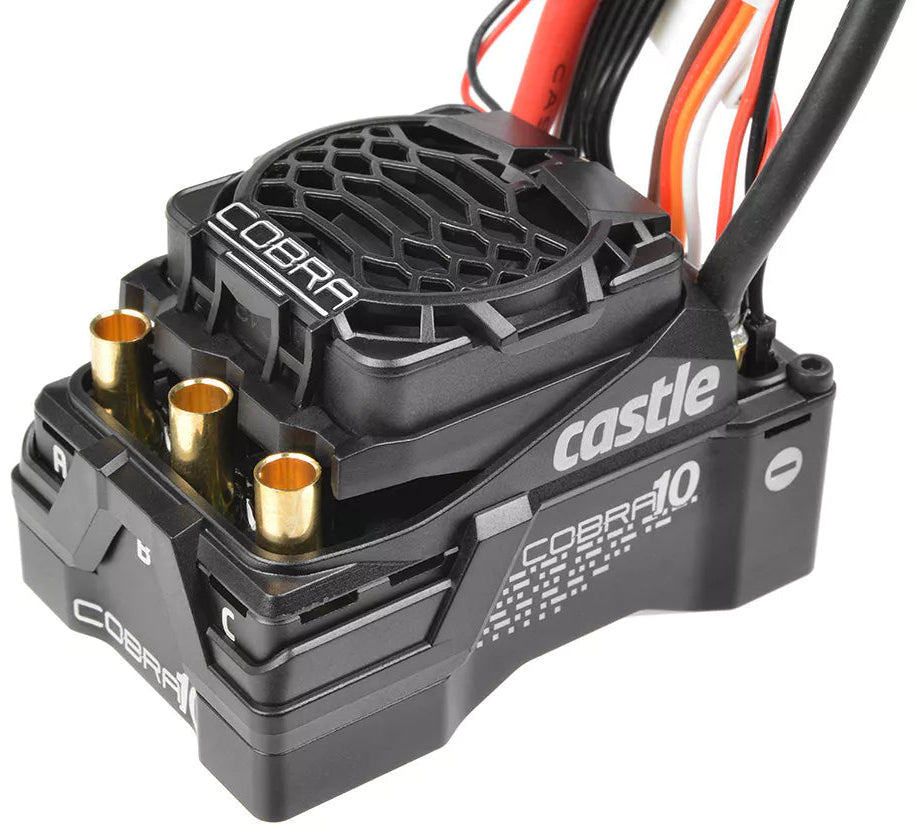

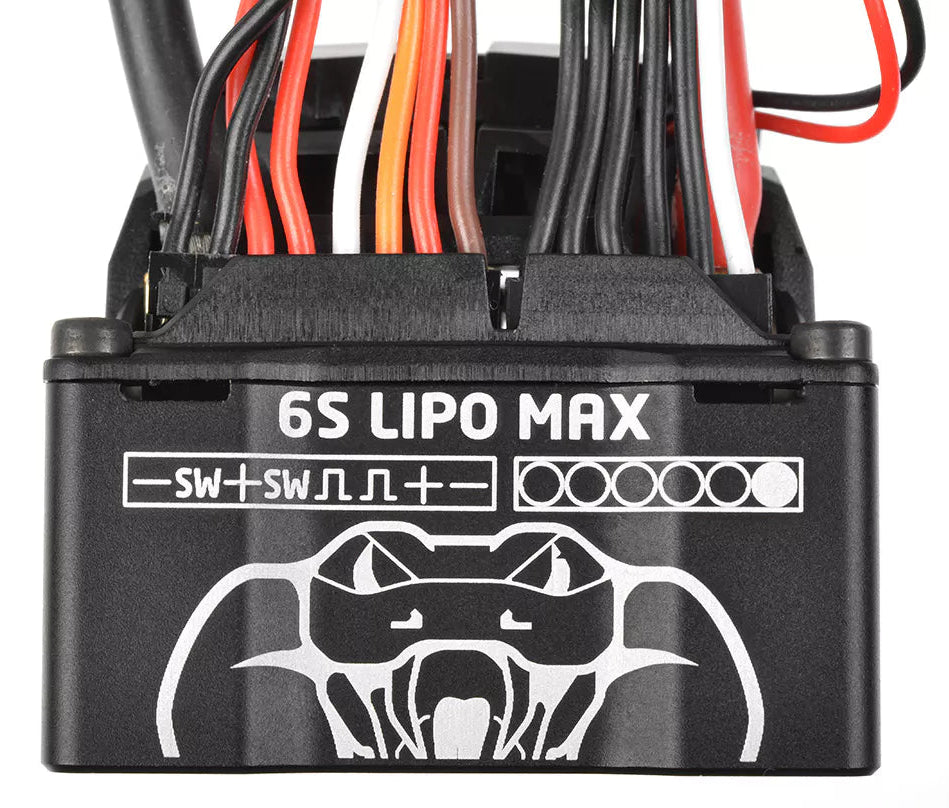

Presentation of the ESC Cobra 10 6s Castle Creations
La Cobra 10 revolutionizes model railroading with a ESC designed for speed and endurance.
Its processor 32-bit dual-core processor ensures ultra-precise control and performance performance.
The data logging reveals every parameter of your runs.
Made-to-measure CNC aluminum and technology CRYO-DRIVE™ maintain an ideal temperature, even in extreme conditions, and extend the life of your electronics.
Sound BEC 8A power supply for demanding servos.
Features of the ESC Cobra 10 6s Castle Creations
Power and control
- 32-bit processor dual-core processor: provides superior responsiveness and precision for exceptional motor control.
- Multiple modes (SmartSense™, Sensored Only and Brushed Motor): adapt the Cobra 10 to your riding style and preferred configurations by radio-controlled model-building.
Enhanced data logging
- Doubled sampling frequency Record more data per second than previous generations.
- Recording time multiplied by 8 : analyze your sessions over longer periods.
- Additional data points (motor timing, acceleration thanks to integrated accelerometer...)
- Automatic recording loop no more unexpected interruptions in your readings.
- Possibility of remotecharger specific sessions Focus on the key moments of your races.
Slope management and braking
- Hill Hold The new "rock crawling" system: holds the vehicle firmly in place on hillsides, ideal for rock crawling.
- Reinforced drag brake eliminates unwanted movement on slopes or during sudden stops.
- Adjustable braking and reversing Customize your braking and reverse curves for perfect steering.

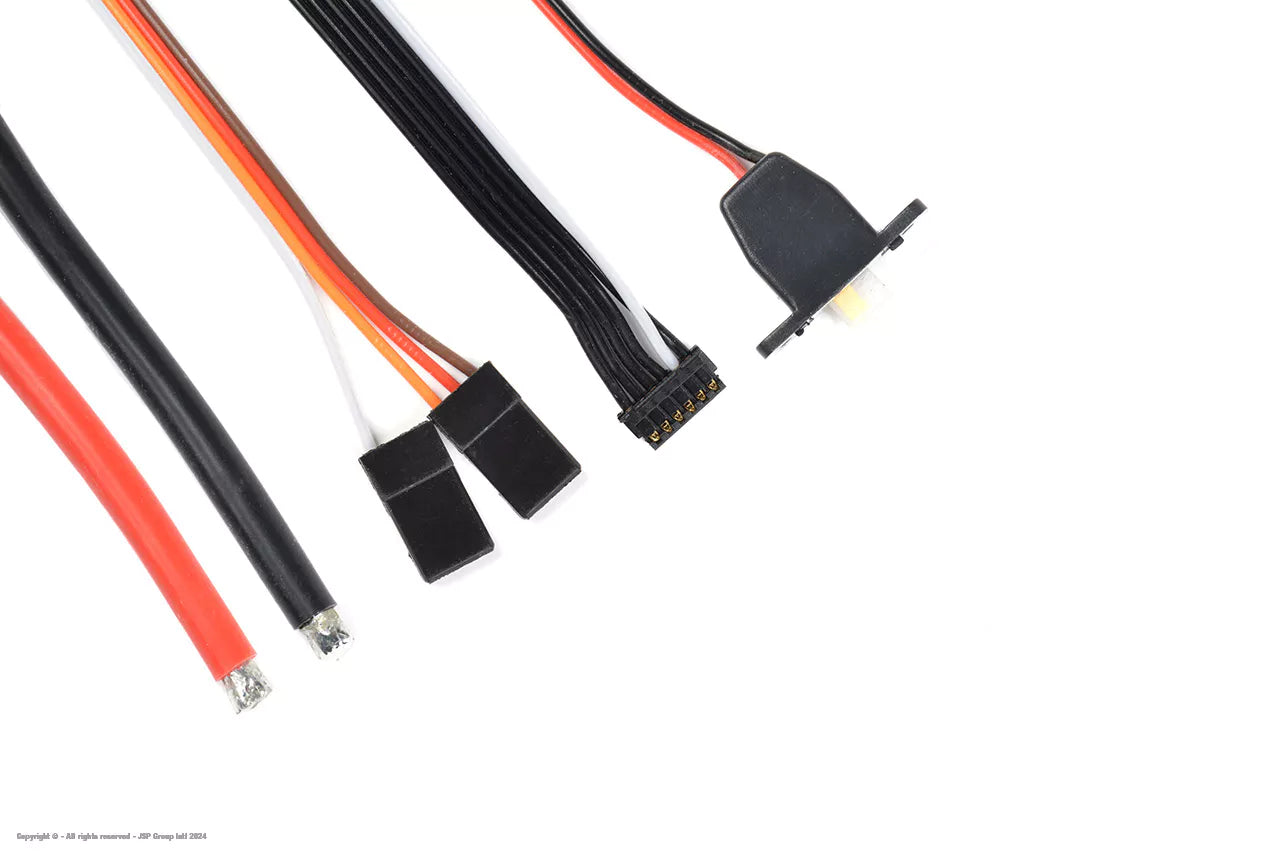

Power supply and connections
- BEC adjustable 5.0V - 8.0V (0.1V increments): the Cobra 10 is capable of delivering up to 8A to effortlessly power your high-end servos.
- Castle Link V4 USB (USB-C included) Castle Link V4 USB: free access to all setting options and firmware updates (Windows 10 or higher required).
Robust design
- CNC aluminum housing aluminum housing: efficiently dissipates heat and protects electronics in extreme conditions.
- CRYO-DRIVE™ technology minimizes heat generation in partial use to extend the life of theESC.
- Reinforced sealing : internal components embedded in waterproof resin to withstand humidity and dust.
Easy installation
- Mounting center distance on the underside of the housing: easily fix the Cobra 10 in your chassis (template available in the resources tab).
- Input voltage range from 6.0V to 25.2V (2s - 6s LiPo): wide compatibility for various surface applications, with a limit to 4s if you use the 1406-1900kv motor supplied.
