The servo is the heart of the "RC" system and the pillar of a remote control model. Connected to the steering, it transforms the movements of the transmitter into steering movements on the vehicle. It also plays a crucial role for vehicles. An incorrectly sized servo presents deficiencies in terms of actuation time and lifespan. This is why it is essential to choose a quality servo: efficiency, reliability, and durability!
Our servo offers massive actuation power , up to 34 kg with direct connection to a 3S or 4S LiPo battery. And all this happens in a blazing 0.080 seconds!
Unlike cheap servos that can fail under pressure, the Servo Crawler Spec. is built to last. It promises unprecedented reliability and a long service life.
Thanks to its IP67 certification, our servo is not only waterproof , but also dust resistant . Whether you're in the rain or in dusty conditions, it won't let you down.
Designed primarily for heavy vehicles such as 1:8 and 1:10 crawlers, this servo is ideal for any vehicle requiring significant force on the steering axle.
Don't compromise on your servo. Invest in reliability and performance with our Servo Crawler Spec. .

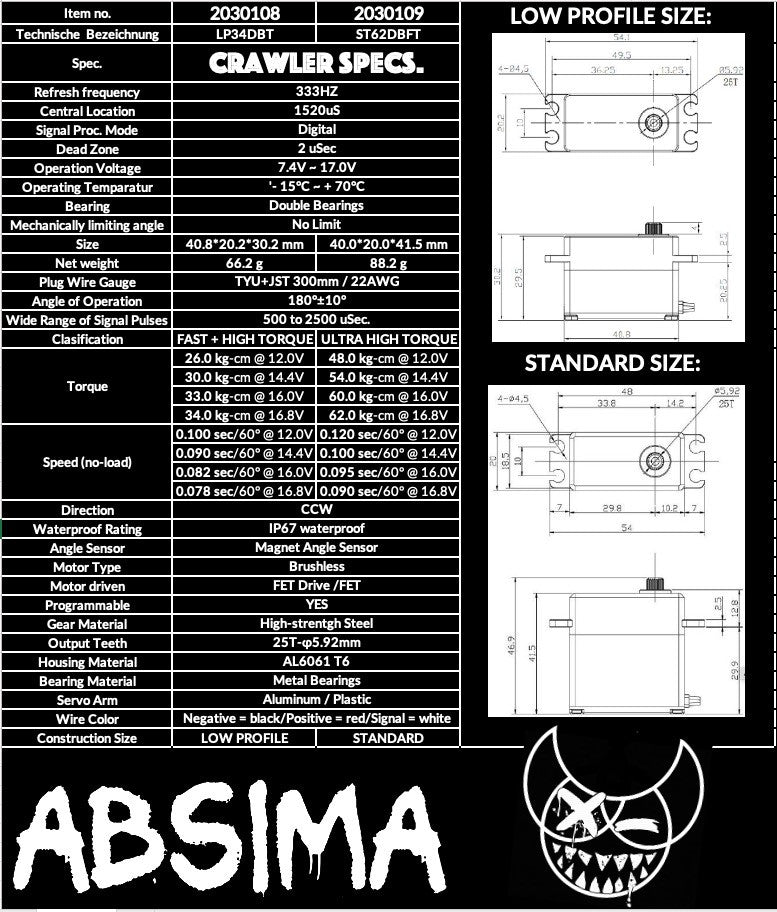

- Operating voltage: 7.4 - 16.8 V HT
- Torque / Speed at 12 V: 26.0 kg / 0.100 s/60°
- Torque / Speed at 14.4 V: 30.0 kg / 0.090 s/60°
- Torque / Speed at 16 V: 33.0 kg / 0.082 s/60°
- Torque / Speed at 16.8 V: 34.0 kg / 0.078 s/60°
- Technology: Digital
- Motor type: Brushless

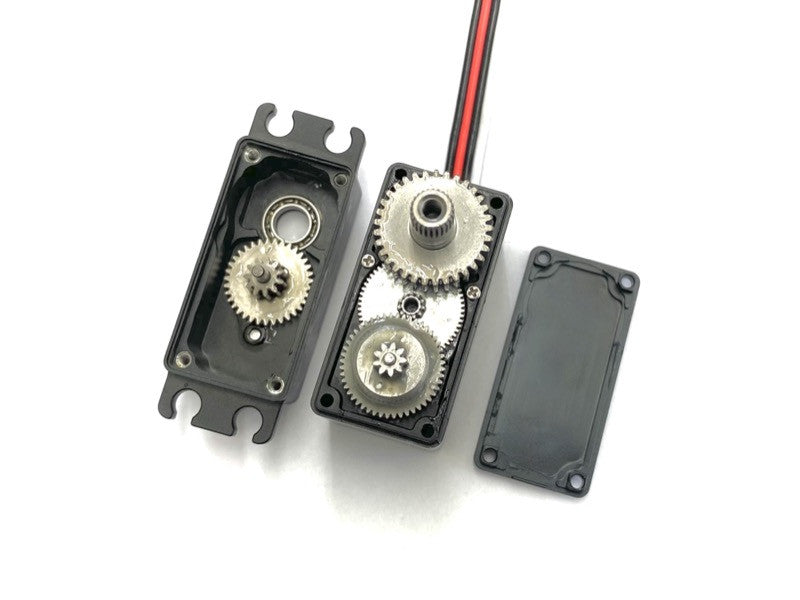

- Gear material: reinforced steel
- Housing Material: T6 Aluminum
- Waterproof rating: IP67 waterproof
- Bearing: Metal ball bearings
- Servo arm: 1x aluminum, 2 plastic
- Size: 40.8x20.2x30.2mm (standard)
- Weight: 66.2g
- Programmable: Yes with USB interface adapter #2030110 (sold separately)
