1/8 Revenge CTM V3 engine presentations Absima
After months of development by our engineers and factory pilots, the REVENGE CTM V3 offers performance superior to that required at the highest level of the competition. Its machined housing with heat sink heat sink maintains optimum temperature, while its operation sensored operation guarantees smooth, controlled power. Thanks to its 4-pole rotor and precision bearings, the REVENGE CTM V3 delivers reliability reliability torque to win on any track.
1/8 Revenge CTM V3 engine features Absima
Lightened CNC housing with integrated heatsink
- CNC-machined lightweight can machined structure for increased strength and reduced weight.
- Heat dissipator to keep the motor at optimum operating temperature.
High-torque stator
- Stator specially designed to deliver torque high torque and support power.
- Ideal for brisk acceleration and rapid rev-up.
Robust 4-pole rotor
- 4-pole rotor balanced for stability and power power.
- Excellent responsiveness to tackle every bend and straight with confidence.
Optimized cooling system
- Optimized air cooling Strategic openings for air circulation.
- Keeps engine cool temperatureeven during prolonged high-speed operation.
Stainless steel ball bearings
- Stainless steel ball bearings precision bearings designed to withstand high loads.
- Reduces wear and ensures high long life motor life.
Silver-plated solder terminals
- Silver-plated solder tabs Silver-plated solder tabs: maximum electrical conductivity for optimum current transmission.
- Reduces losses and contributes to high performance performance.
Adjustable timing
- Adjustable timing Easily adjust settings for more torque or top speed.
- Perfect for fine-tuning tuning depending on the On-road and your riding style.

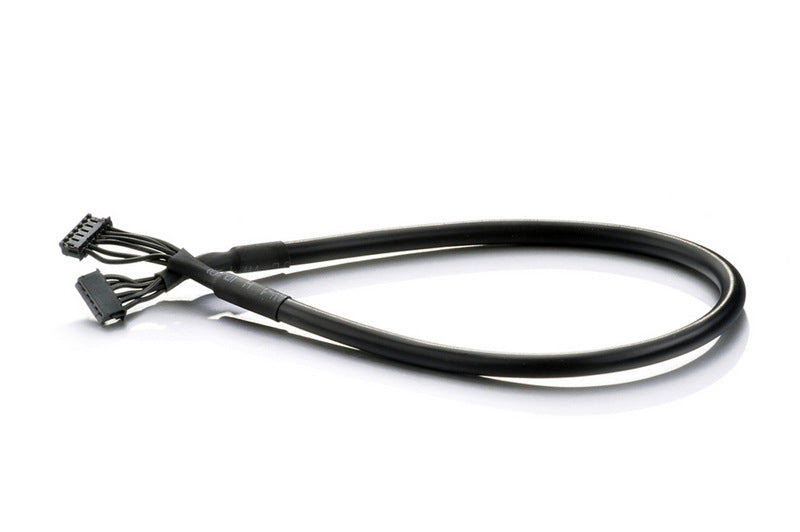

Sensored operation
- Sensored (cable included) Sensored: ensures precise, linear response to acceleration commands.
- Makes power more controllable and reduces jerking, especially in competition.
Developed for maximum performance
- Developed for maximal performance designed to meet the demands of professional pilots.
- The REVENGE CTM V3 1900KV outperforms the competition on every track.
ROAR certification (pending)
- ROAR approval (pending) ROAR approval: awaiting validation for official participation in competitions.
- A guarantee of seriousness for drivers wishing to compete with the best.
Technical specifications
- Power 1900kv or 2100kv
- Current : 118A
- Efficiency : 88%
- Voltage / Cells 4-6S LiPo
- Ø axis 5.0 mm
- Axis length : 18.3 mm
- Diameter Diameter : 42.0 mm
- Housing length length : 69.0 mm
- Weight : 320 g
