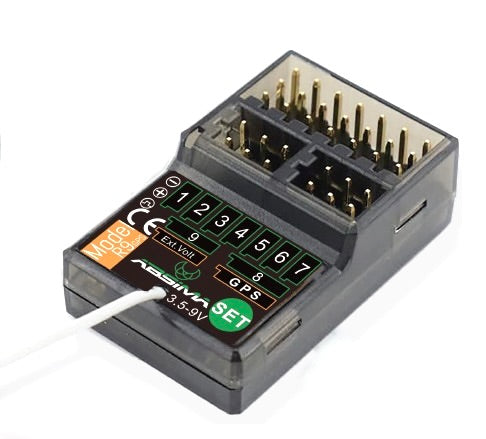

The Absima 9 Channel R9GPS 2.4GHz receiver (reference 2020023) is designed to be compatible with the CR9T radio . This high performance receiver operates with a current of 95mA and a voltage of 3.5V to 9.0V. It uses the 2.4GHz frequency band and supports external voltage detection from 1 to 36V DC. With 9 PWM channels (4096), this receiver is capable of handling servos with rotation angles from 180° to 270°.
The R9GPS receiver is equipped with GPS functionality enabling speed measurement , which is ideal for model applications requiring precise performance tracking.

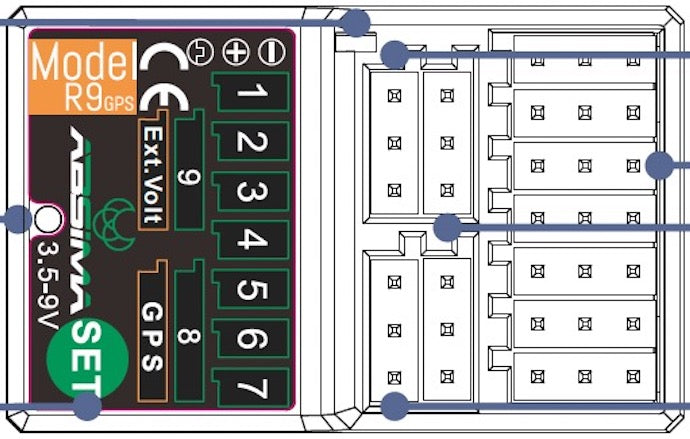

To link the receiver to the transmitter, go to the transmitter's link menu, select "Link", then click the start button to enter link mode. Then turn on the receiver and hold the [SET] button for 3 seconds until the orange LED light flashes. Once the pairing is successful, the LED indicator on the receiver will turn green and steady.
- Green: Binding successful
- Blue (flashing): Wireless update mode
- Red: No signal
- Red (flashing): Voltage below 3.7V
- Orange (slow flashing): Pairing
- Operating voltage: 3.5V-9.0V
- Frequency band: 2.4 GHz
- External voltage detection: DC 1 ~ 36 V
- PWM: 9 channels (4096)
- Steering motor: supports 180/270°
- GPS: supports speed measurement
- Size:36.0x22.8x12.6mm
- Weight: 8.3g
